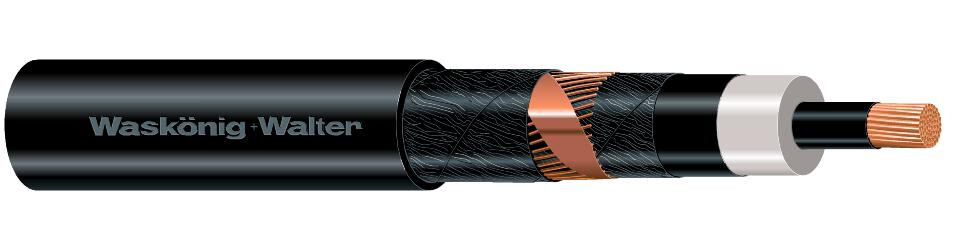

N2XS2Y 30kV

	Number of cores	Cross section conductor	Technical features	Product
N2XS2Y 30kV 1X50 RM/16 30kV	1	50 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 50 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 35 mm Min. permitted bending radius, stationary application/permanent installation 525 mm Weight 1,243.6 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233564 Cut length Ring, Drum
N2XS2Y 30kV 1X70 RM/16 30kV	1	70 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 70 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 37 mm Min. permitted bending radius, stationary application/permanent installation 555 mm Weight 1,486.7 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233595 Cut length Ring, Drum
N2XS2Y 30kV 1X95 RM/16 30kV	1	95 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 95 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 39 mm Min. permitted bending radius, stationary application/permanent installation 585 mm Weight 1,783.6 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233618 Cut length Ring, Drum
N2XS2Y 30kV 1X120 RM/16 30kV	1	120 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 120 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 40 mm Min. permitted bending radius, stationary application/permanent installation 600 mm Weight 2,037.6 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233649 Cut length Ring, Drum
N2XS2Y 30kV 1X150 RM/25 30kV	1	150 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 150 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 42 mm Min. permitted bending radius, stationary application/permanent installation 630 mm Weight 2,399.3 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233670 Cut length Ring, Drum
N2XS2Y 30kV 1X240 RM/25 30kV	1	240 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 240 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 46 mm Min. permitted bending radius, stationary application/permanent installation 690 mm Weight 3,340.65 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 233731 Cut length Ring, Drum
N2XS2Y 30kV 1X240 RM/70 30kV	1	240 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 240 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 46 mm Min. permitted bending radius, stationary application/permanent installation 690 mm Weight 3,759.1 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 236305 Cut length Ring, Drum 292776 Cut length Ring, Drum
N2XS2Y 30kV 1X240 RM/16 30kV	1	240 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 240 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 46 mm Min. permitted bending radius, stationary application/permanent installation 690 mm Weight 3,292.6 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 293414 Cut length Ring, Drum
N2XS2Y 30kV 1X300 RM/25 30kV	1	300 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 300 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 48 mm Min. permitted bending radius, stationary application/permanent installation 720 mm Weight 3,940.9 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 254972 Cut length Ring, Drum
N2XS2Y 30kV 1X300 RM/70 30kV	1	300 mm²
Conductor material Copper Conductor surface Bare Nominal cross section conductor 300 mm² Conductor category Class 2 = stranded Shape of conductor Round Number of cores 1 Stck Core identification None Laminated sheath No Fibre optic elements No Protective conductor No Inner semi-conducting layer Yes Outer semi-conducting layer Yes Screen Yes Concentric conductor None Armouring No Material outer sheath Polyolefin Specification material outer sheath Polyethylene (PE) Colour outer sheath Black Conductive coating No Longitudinal water blocking conductors No Longitudinal water blocking screen No Reaction-to-fire according to EN 13501-6: Class Fca Halogen free (acc. EN 60754-1/2) Yes Flame retardant No Low smoke (acc. EN 61034-2) No Outer diameter approx. 48 mm Weight 4,359.4 kg/km Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling -20 <=> 70 °C Nominal voltage U0 18 kV Nominal voltage U 30 kV max. short circuit temperature 250 °C Insulation XLPE (VPE) Minimum bending radius 15 x Außen-Ø Product No. Individual length Pallet unit Packing 565030 Cut length Ring, Drum

Title	Type	Language
Datasheet	PDF	Deutsch English Français Nederlands
Declaration of Performance	PDF	български Česká Dansk Deutsch Eesti English Español Ελληνικά Français Gaeilge Hrvatska Italiano Latvian Lietuvių Magyar Malti Nederlands Polski Português Română Slovenščina Slovenský Suomi Svenska

We can supply you with shorter lengths and longer lengths of the many cables our company offers, which are available right now in the lengths listed. An additional advantage for you: We offer a price discount on each agreed base price/price without metal on our shorter and longer length cables when purchasing the complete length.

If you have any queries in this regard, please feel free to get in touch with your usual contact. Together, we will find the right cable solution for your application. You can directly access our current offers for shorter/longer lengths here.

To shorter and longer lengths "N2XS2Y 30kV"
